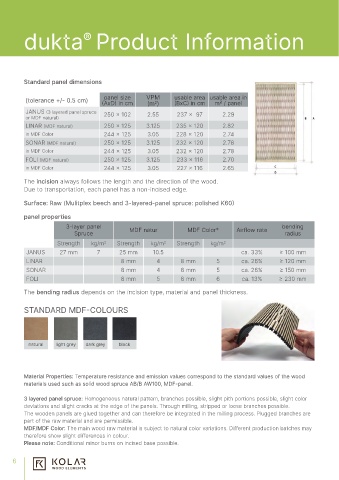

dukta Product Information
®

Standard panel dimensions

panel size
usable area usable area in
(tolerance +/ 0.5 cm) AxD in cm VPM BxC in cm m² / panel
(m )
2
JANUS 3 layered panel spruce 250  102 2.55 237  97 2.29
or MDF natural)
LINAR MDF natural) 250  125 3.125 235  120 2.82
in MDF Color 244  125 3.05 228  120 2.74
SONAR MDF natural) 250  125 3.125 232  120 2.78
in MDF Color 244  125 3.05 232  120 2.78
FOLI MDF natural) 250  125 3.125 233  116 2.70
in MDF Color 244  125 3.05 227  116 2.65

The incision always follows the length and the direction of the wood.
Due to transportation, each panel has a non-incised edge.

Surface: Raw (Mulitplex beech and 3-layered-panel spruce: polished K60

panel properties

3-layer panel MDF natur MDF Color* Airflow rate bending
Spruce radius
Strength kg/m 2 Strength kg/m 2 Strength kg/m 2
JANUS 27 mm 7 25 mm 10.5 ca. 33%  100 mm
LINAR 8 mm 4 8 mm 5 ca. 26%  120 mm
SONAR 8 mm 4 8 mm 5 ca. 26%  150 mm
FOLI 8 mm 5 8 mm 6 ca. 13%  230 mm

The bending radius depends on the incision type, material and panel thickness.

STANDARD MDFCOLOURS

natural light grey dark grey black

Material Properties: Temperature resistance and emission values correspond to the standard values of the wood
materials used such as solid wood spruce AB/B AW100, MDF-panel.

3 layered panel spruce: Homogeneous natural pattern, branches possible, slight pith portions possible, slight color
deviations and slight cracks at the edge of the panels. Through milling, stripped or loose branches possible.
The wooden panels are glued together and can therefore be integrated in the milling process. Plugged branches are
part of the raw material and are permissible.
MDF/MDF Color: The main wood raw material is subject to natural color variations. Different production batches may
therefore show slight differences in colour.
Please note: Conditional minor burns on incised base possible.
